Z720A

Thank you

Item number: Z720A

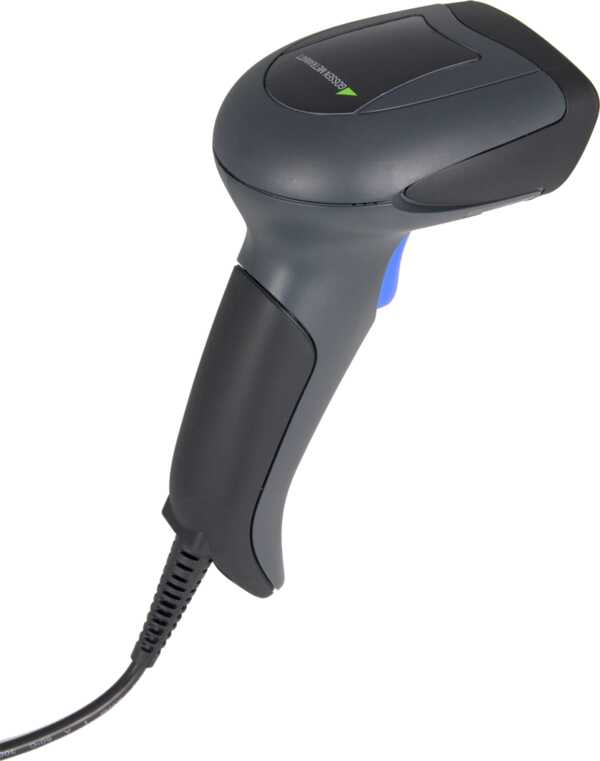

Barcode Reader / Scanner with Laser for Test Instruments with RS 232 Port

  • z720a-barcodescanner_z720a_front_15066.jpg
  • z720a-barcodescanner_z720a_persp1_15065.jpg

For identifying devices and system components. Devices and system components can be logged by our test instruments, and acquired measured values can be allocated to them with the scanner. See our barcode and label printers for water-insoluble labels as well.

  • Technical characteristics

    Advantages of the laser scanner:

    • scanning of 2D codes eg. QR codes ... (*)
    • Scanning of barcodes from considerable distances
    • Variable barcode lengths
    • Better reading accuracy

    The barcode scanner is configured for use with the following barcodes: EAN 13, CODE 39 and CODE 128.

    For use with PROFITEST 204 and MetraMachine an additional adapter is required. For use with SECUTEST PSI or SI+ an upgrade in our GMC-I Service is required [...more].

    Please contact our product support department if you would like to use the SECUTEST... for other codes.

    Barcode Reader / Scanner

    Type Z720A Z751A

    Technology Sensor: wide VGA Sensor: wide VGA

    Interface RS232 USB

    Readable codes Code 39, Code 128, EAN 13, EAN 128, 2D-Code, ..

    Approx. scanning distance 350 mm 350 mm

    Power supply Via RS232 Via USB

    Operating temperature 0 ... 50 °C 0 ... 50 °C

    Dimensions 163 x 91 x 41 mm 163 x 91 x 41 mm

    (*) 2D codes (and QR codes) as of serial number G15 (approx. August 2015).

    See additional ID systems for data logging.
