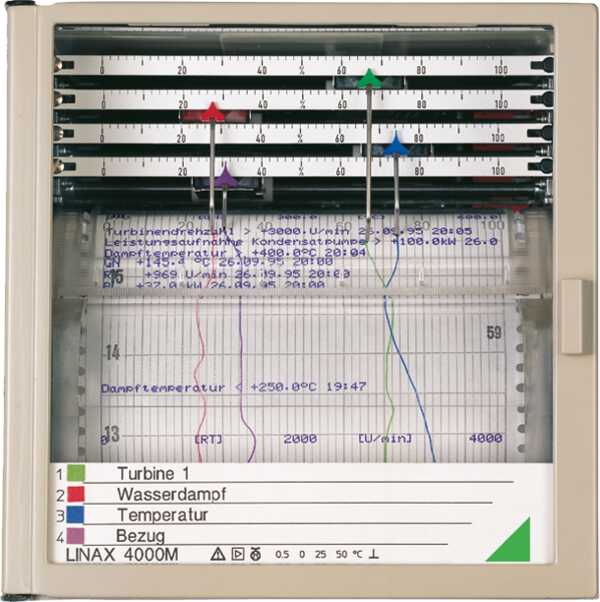

LINAX 4000M

Item number: A4003

1...4-Channel Continuous Line Recorder, 144 x 144 mm

Freely selectable parameters allow for the adaptation of the LINAX 4000M to measuring tasks including the recording of temperature with Pt 100 sensors or thermocouples.

Pressure, moisture or electrical quantities can be fed to the recorder via measuring transducer. Parameter settings are selected at the keypad, via the RS 485 interface or with the RS 232 adapter. Integrated limit monitoring and binary inputs and outputs can be used for process control.

Instead of using a line channel, measurement values are documented graphically (as a dotted line) and alphanumerically. The printer channel furnishes limit value messages with date, time, chart speed and freely selectable clear text. Additional time markers portray binary process conditions.
