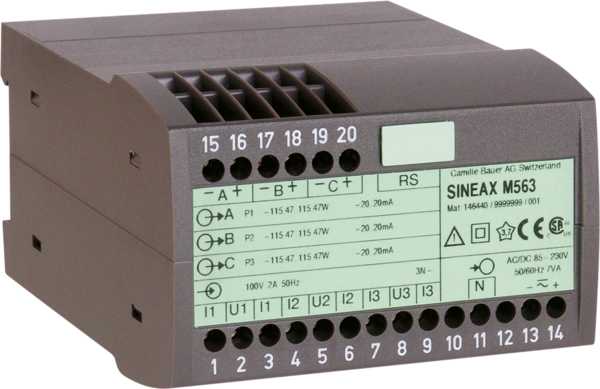

SINEAX M563

Thank you

Title

First name *

Last name *

Company *

ZIP Code *

Town *

Street/house number *

Telephone *

Fax

Email *

Comment *

Newsletter registration?

Item number: 563-

Prog. Multi-Transducer, 3 Analog Out, RS232

For simultaneously acquiring 3 freely selectable measured quantities in electrical systems. Equipped with 3 electrically isolated current outputs.

Technical characteristics
- 3 analogue outputs
- Application (system) programmable
- Rated current 1 to 6 A programmable
- Rated voltage 57 to 400 V (phase-to-neutral) or
- 100 to 693 V (phase to phase) programmable
- Universal analogue outputs (programmable)
- High accuracy: class 0.5
- Software with password protection for programming, data analysis, power system status simulation, acquisition of meter data and making settings
- DC, AC power pack with very large tolerance range
- Mounting: For snapping onto top-hat rail
- CSA certificate
SINEAX M561 M562 M563
Article number 561-4.. 562-4.. 563-4..
Measuring inputs 1 2 3
Analogue outputs 1 2 3
RS232 interface x x x
Auxillary power Preferred types
24 ... 60 VAC,DC 158411 158437 146458
85 ... 230 VAC,DC 158429 158445 146440
Order other variants with complete order code (563-4... ....) in accordance with the data sheet. See data sheet for default configuration.

Contents

1 Operating Instructions for SINEAX M561/M562 resp. M563, in three languages: German, French, English
1 blank type label, for recording programmed settings
