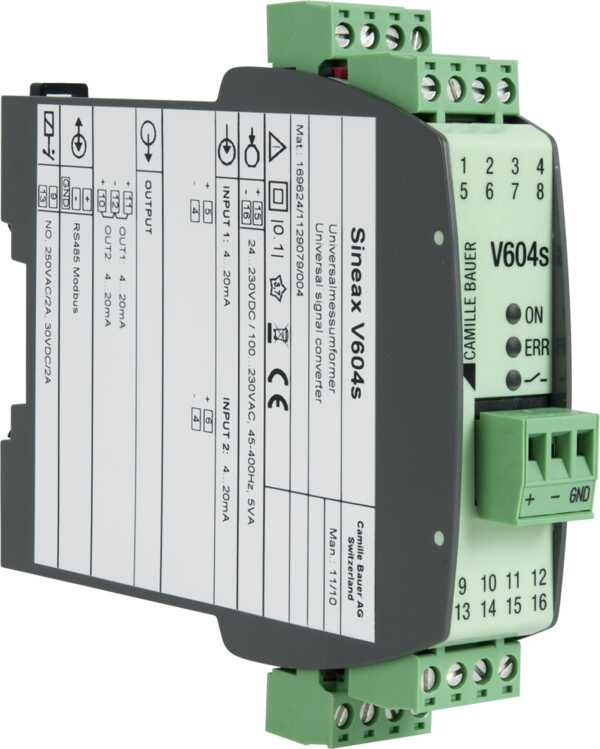

SINEAX V604s

The V604s is for top-hat rail mounting with the following main features:

• Measurement of DC-voltage, DC-current, temperature (RTD or TC), resistance
• Sensor connection without external jumpers
• 2 inputs (e.g. for sensor redundance or differential measurement)
• 2 outputs (U and / or I)
• 2 inputs can be combine with each other and can be related to the 2 outputs. With this calculations and sensor monitoring is possible (e.g. for a predictive maintenance of the sensors)
• System capability: communication through RS485 Modbus-interface
• Programmable relais e.g. for limi valves and alarms
• AC/DC-wide range power supply unit
• Pluggable top quality value screw terminals

All adjustments of the device can be adapted to the measuring task by means of a PC-software. The software can also be used for visualization, commissioning and for service.

1 SINEAX V604s

1 Safety Instructions 168 501

1 Software and Docu-CD 156 027
