SECULIFE DP BASE

Thank you

Item number: M695S

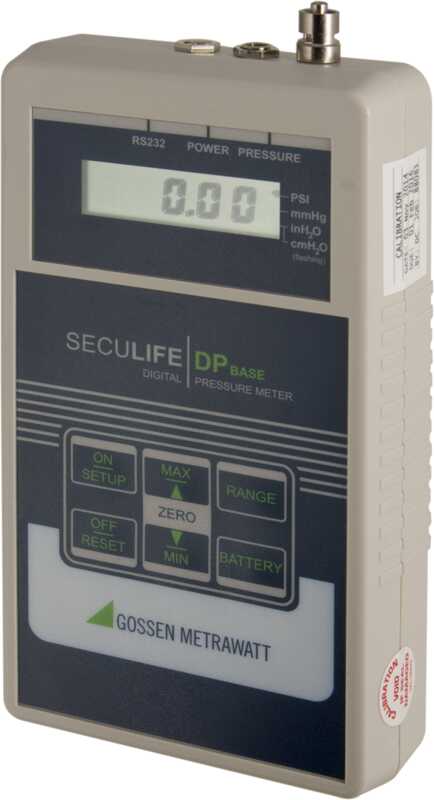

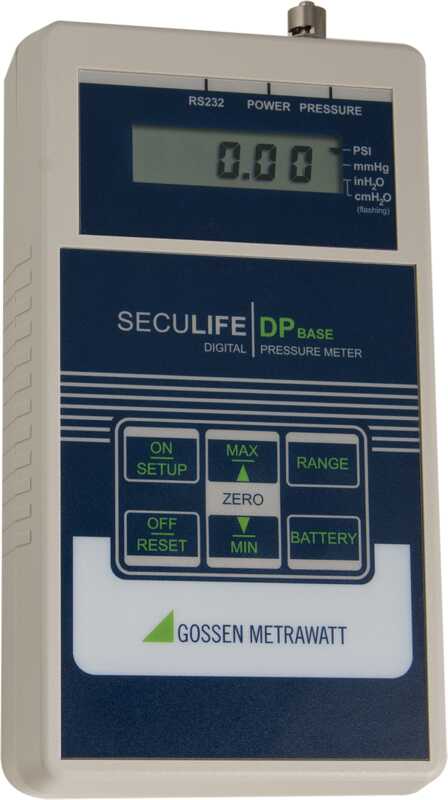

Precision Digital Measuring Instrument for Pressure Measurement

  • m695s-seculifedpbase_front_15001.jpg
  • m695s-seculifedpbase_persp1_15002.jpg
  • m695s-seculifedpbase_persp2_15038.jpg

The SECULIFE DP BASE precision pressure gauge is a top quality measuring instrument for the detection of positive and negative pressure in compatible liquids and gases.

The utilized LCD is distinguished by good legibility. The instrument is equipped with an RS 232 port for data communication and offers the additional option of Min-Max measurement. The SECULIFE DP BASE is digitally calibrated and features excellent accuracy, namely 0.1% of the overall display.

  • Technical characteristics
    • Measuring ranges:
      -13.50 to 100.00 psi
      -701 to 5190 mmHg @ 20° C
      -374 to 2773 inH2O @ 20° C
      -951 to 7043 cmH2O @ 20° C
    • ± 0.1% pressure measuring accuracy
    • 5 digit LCD display
    • Programmable digital filter
    • Digital calibration and zero adjustment
    • Male Luer connector
    • Pressure measurement in liquids and gases
    • Min-Max capture function
    • RS 232 port
