Item number: M6950

Configurable Precision Digital Measuring Instrument for Pressure Measurement

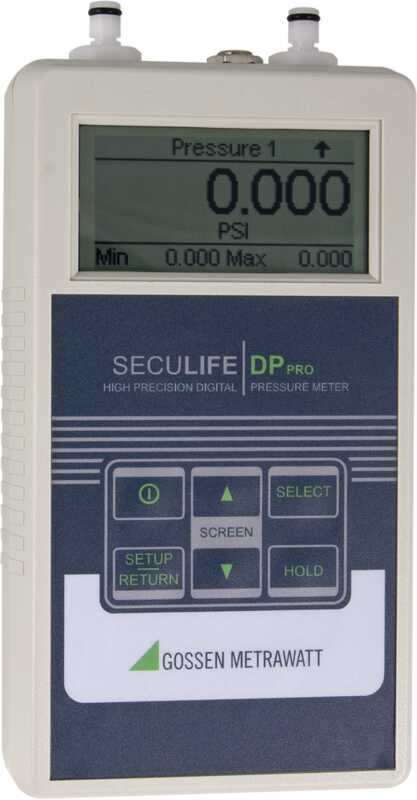

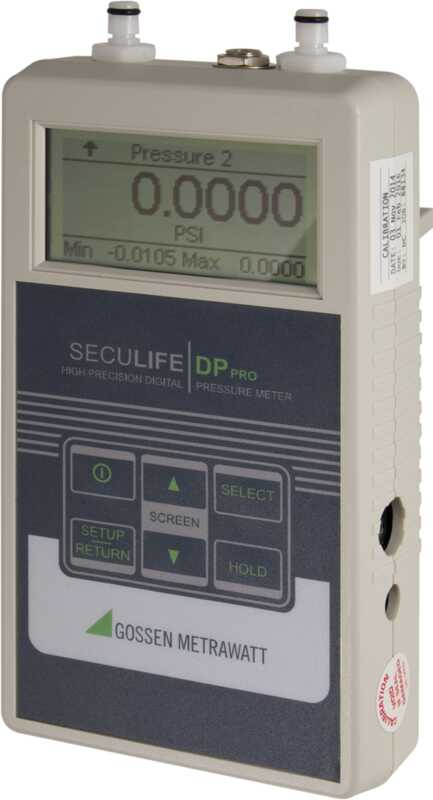

The SECULIFE DP PRO precision pressure gauge is a top quality, precision measuring instrument for the detection of positive and negative pressure in compatible liquids and gases.

The utilized LCD is distinguished by good legibility. The instrument is equipped with an RS 232 port for data communication and offers the additional option of Min-Max measurement. The SECULIFE DP PRO is digitally calibrated and features excellent accuracy, namely 0.05% of the overall display.

Technical characteristics
- Measuring ranges: psi, mm Hg at 0 / 20 °C, in Hg at 0 / 20 °C, cm H2O at 20 °C, in H2O at 4 / 20 °C, in H2O at 60 °F, kg/cm2, kPa, mBar, bar
- 2 selectable pressure measuring channels 0.3, 5, 10, 75, 100 psi
- Temperature option: YSI 700 or RTD 100
- 24-bit measuring depth
- ± 0.05% pressure measuring accuracy
- Graphic LCD
- Programmable digital filter
- Digital calibration and zero adjustment
- Quick disconnect connector
- Pressure measurement in liquids and gases
- Min-Max capture function
- RS 232 port
