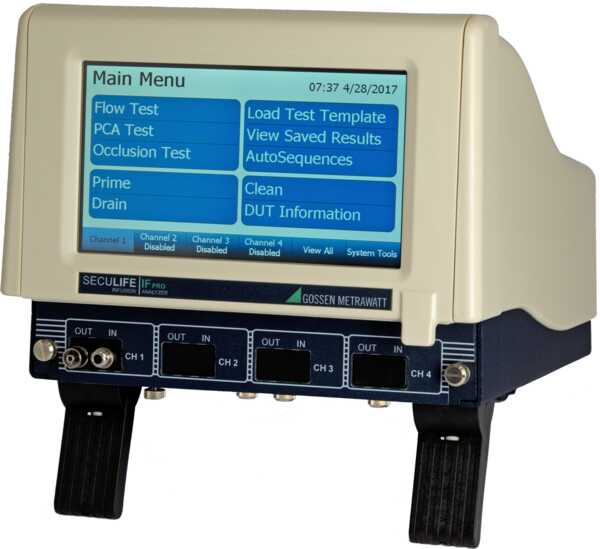

SECULIFE IF PRO

Item number: M6960

Multi-channel, modular infusion pump tester

The most compact, fully equipped 4-channel analyzer available on the market. Tests in accordance with DIN EN 60601-2-24 (VDE 0750-2-24) are executed manually or automatically.

The SECULIFE IF PRO is a highly precise, easy-to-use system which permits touchscreen control of all processes without the use of old-fashioned keys and buttons. The new test system with patent pending is driven by a stepper motor and permits continuous monitoring of the flow of liquid without any need for stopping and intermittent cleaning. This provides the infusion pump under test with a more realistic flow path, thus resulting in more accurate measured values.

The design of the modular test instrument – with test modules which function independent of each other – permits calibration of the individual test modules without downtime for the overall instrument.

The software of the Seculife IF Pro has been updated to version 1.2.0.0.
The resulting improvements can be found under the technical features.

Product Highlights

• PCA/bolus
• Back pressure simulation
• Occlusion alarm
• Trumpet curve analysis
• 1, 2, 3 and 4-channel models available (customer retrofittable)
• Interchangeable test modules
• Calibration of the test modules without the basic unit
• Automatic test sequences

Your advantages

• Intuitive operation
• Automatic test procedures
• Independent functioning of the individual channels
• Large internal test results memory
• Can be retrofitted and expanded on-site
• Minimal noise emission
• High-speed testing
