PRO-TYP I

Item number: Z525B

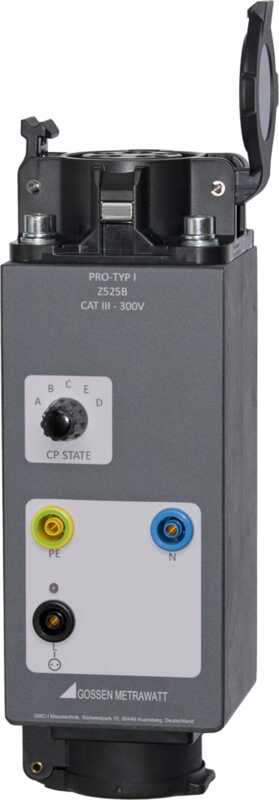

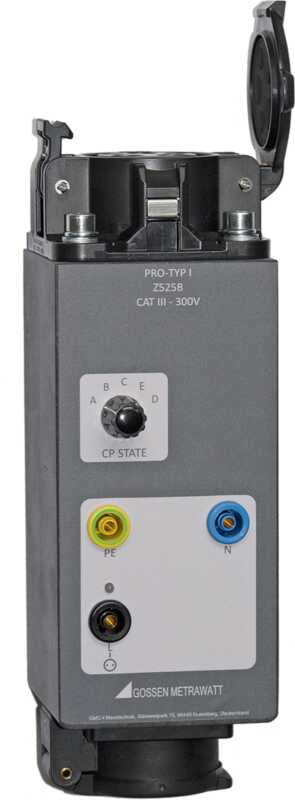

Test adapter for electric charging stations (single-phase, type 1) for PROFITEST

Single-phase test adapter with type 1 plug for testing the effectiveness of protective measures at electric charging stations with the PROFITEST Master, simulation of fictitiously connected electric vehicles and current-carrying capacity of cord sets per IEC 61851-1

Vehicle simulation (CP)
Vehicle states A through E are selected with a rotary switch.

Cable simulation (PP)
with permanently wired cable coding

Fault simulation
simulation of a short-circuit between CP and PE by means of a rotary switch

Indication of phase voltages via LEDs

For vehicle simulation (CP)
States A, B, C, D and E can be simulated in accordance with IEC 61851. The various vehicle states are selected by means of a rotary switch.

• • State A – no vehicle connected
• • State B – vehicle connected, but not ready for charging
• • State C – vehicle connected and ready for charging, venting of the charging area not required
• • State D – vehicle connected and ready for charging, venting of the charging area required
• • State X – error: Short circuit between CP and PE via internal diode
