Item number: Z525A

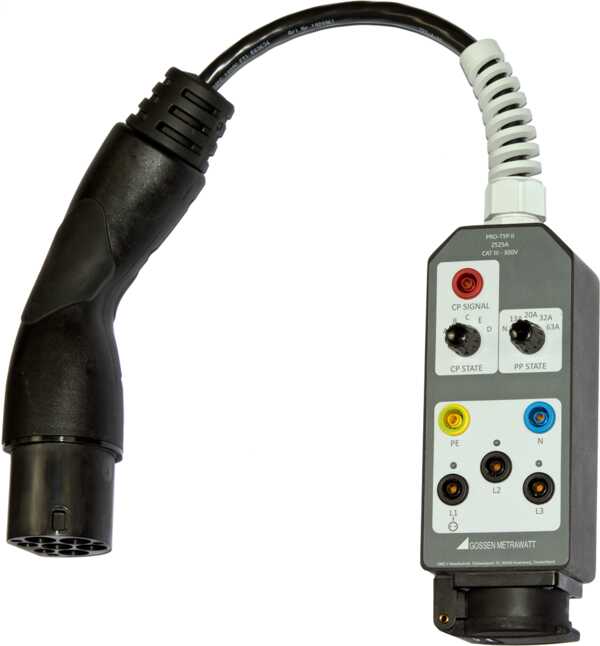

Test adapter for electric charging stations (single/3-phase, type 2) for PROFITEST

Single and 3-phase test adapter with type 2 plug for testing the effectiveness of protective measures at electric charging stations with the Profitest Master, simulation of fictitiously connected electric vehicles and current-carrying capacity of cord sets per IEC 61851-1

Vehicle simulation (CP)
Vehicle states A through E are selected with a rotary switch.
Cable simulation (PP)
The various codings for charging cables with 13, 20, 32 and 63 A, as well as “no cable connected”, can be simulated with the help of a rotary switch.
Fault simulation
simulation of a short-circuit between CP and PE by means of a rotary switch
Indication of phase voltages via LEDs
Depending on the charging station, either one or three phases can be active.
Testing of electric charging stations with permanently attached charging cable by means of an extended CP test pin

Technical characteristics
For vehicle simulation (CP)
States A, B, C, D and E can be simulated in accordance with IEC 61851. The various vehicle states are selected by means of a rotary switch.
- State A – no vehicle connected
- State B – vehicle connected, but not ready for charging
- State C – vehicle connected and ready for charging, venting of the charging area not required
- State D – vehicle connected and ready for charging, venting of the charging area required
- State E – error: Short circuit between CP and PE via internal diode
Regarding cable simulation (PP):
The various codings for charging cables with 13, 20, 32 and 63 A can be simulated. It’s also possible to simulate the “no cable” state.

The various charging cables are simulated by connecting different resistances between PP and PE with the help of a rotary switch. The following values are possible in accordance with IEC 61851:
- No cable – 0 Ω
- 13 A cable – 1.5 kΩ
- 20 A cable – 680 Ω
- 32 A cable – 220 Ω
- 63 A cable – 100 Ω

Technical product comparison
Compare
Contents

1 PRO-TYP II test adapter
1 set operating instructions
