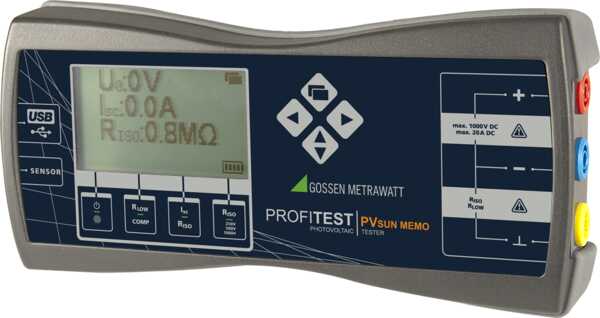

PROFITEST PVSUN MEMO

The test instrument is suitable for testing PV modules and strings with up to 1000 V / 20 A. In addition to insulation measurement, polarity testing and ground fault testing, the protective conductor can also be tested for continuity. The tester is distinguished by its ergonomic design and easy handling with a weight of only 500 g.

PROFITEST PV SUN MEMO – with bidirectional interface and memory

• Voltage measurement: 0 ... 1000 V DC
• Current measurement (direct): 0 ... 20 A DC
• Insulation resistance measurement, measuring range: 0 ... 20 MΩ, test voltages: 250, 500, 1000 V DC
• Earth fault measurement 0 ... 1000 V DC
• Testing for protective conductor continuity: 0 ... 10 Ω / > 200 mA
• Polarity test
• Backlit LCD panel
• Compact and rugged, for service calls under harsh conditions • Extensive accessories • DAkkS calibration certificate (optional)

1 PROFITEST PVSUN or PROFITEST PVSUN MEMO test instrument
1 Set of 4 batteries, 1.5 V IEC LR6 (AA)
3 Safety measurement cables, 1.5 m, red, blue and yellow: banana plug – banana plug
1 Solar plug adapter, red: MC3 coupling – banana coupling
1 Solar plug adapter, red: MC4 coupling – banana coupling
1 Solar plug adapter, blue: MC3 plug – banana coupling
1 Solar plug adapter, blue: MC4 coupling – banana coupling
1 Plug-on safety test probe with socket, red
1 Plug-on safety alligator clip with socket, yellow-gray
1 Carrying case with foam insert
1 Set of operating instructions
1 PC software (PROFITEST PVSUN MEMO only) for download from our website: www.gossenmetrawatt.com
1 USB interface cable (PROFITEST PVSUN MEMO only)
