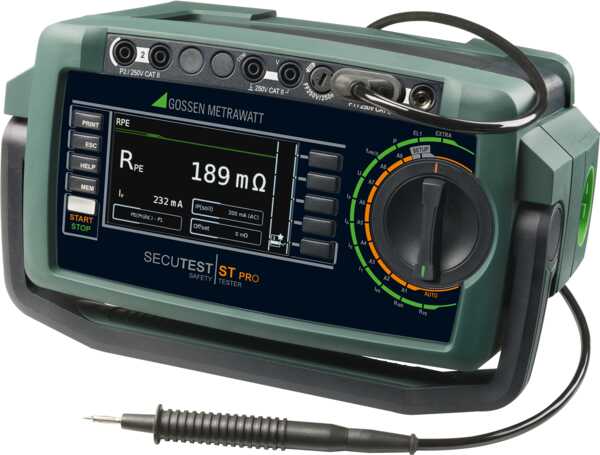

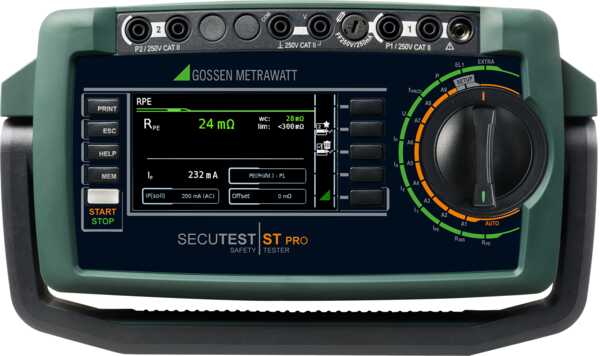

Item number: M707B

Test instrument with standards-compliant test sequences for testing the electrical safety of devices after repair and for periodic testing including IZYTRONIQ data processing software

The SECUTEST ST PRO provides all measuring and test functions for testing the effectiveness of protective measures at electrical medical devices, as well as welding equipment – with predefined as well as programmable test sequences which are required in accordance with test standards EN 50699/ EN 50678 (VDE 0701-0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4).

The new, further optimized measuring cycles ensure even more measurements per day. Operation is so easy that testing can be conducted without any special knowledge. With the SECUTEST ST PRO service guarantee, you can be sure that your test instrument will still be up to date even after 10 years. It’s not without good reason that the SECUTEST has been in use by our customers for more than 20 years in some cases – and it’s the best-selling safety tester for all devices up to 400 V with and without plug.

Product Highlights

Preconfigured and user programmable test sequences for testing electric devices quickly
Suitable for use by instructed persons
Extensive data management and storage concept for automated test sequences and individual measurements – for up to 50,000 data records
providing HTML test report on USB memory

Your advantages

User prompting by means of preprogrammed test sequences in accordance with the standards with automatic evaluation, and thus exceptionally well suited for use by instructed persons
Quick access to measuring and test functions via the rotary switch, direct selection keys and softkeys
Especially well suited for mobile use, even at construction sites and in industrial environments, thanks to the compact, impact-resistant housing with integrated rubber protector
Unique multiple measurement permits convenient documentation of several measuring points
Suitable for international use thanks to extensive setting options for language, keyboard, character set, date, time and country-specific standards

Applications

Reliable, comprehensive and efficient testing of

Electric devices in accordance with manufacturer’s specifications by means of programmed test sequences based on any standards
Electrical devices per EN 50699/ EN 50678 (VDE 0701-0702) including extension cords and PRCDs
Electrical medical devices per IEC/EN 62353 (VDE 0751)
Arc welding equipment per IEC/EN 60974-4 (VDE 0544-4)

Technical characteristics
- Protective conductor resistance measurement
- Insulation resistance measurement
- Leakage current measurements
  Equivalent (alternative) method, direct method, differential method:
  Protective conductor current, touch current
  Device leakage current, patient leakage current, Leakage current from the applied part
- Voltage measurement: Touch voltage, SELV, PELV voltage
- PRCD Time to trip
- Function test (U,I,P,S,LF,f)
- Conductor test: Continuity, short-circuit, polarity (wire reversal)
- Temperature measurement (for Pt100/Pt1000 sensor)
Particularities
- Preprogrammed sequences (per VDE 0701-0702) for testing the following PRCD types: PRCD standard, SPE-PRCD, PRCD-S and PRCD-K
- Remote control is possible
- Additional database elements: property, building, floor and room – in order to better be able to structure comprehensive data – plus additional department and cost center fields as well
- Multi-print – print-out of all reports for a device under test by simply pressing a key (to Z721S thermal printer or USB stick)
- User-defined report templates (for Z721S thermal printer or USB stick)
- RFID transponder (Z751R,S,T), read and write (with SCANBASE RFID Z751E)
- Data export of all test object master data and test results to IZYTRONIQ and a USB stick
- Data import of all test object master data from IZYTRONIQ, or from a USB stick
Optional
- DB Comfort features package
- Bluetooth
