Item number: Z227E

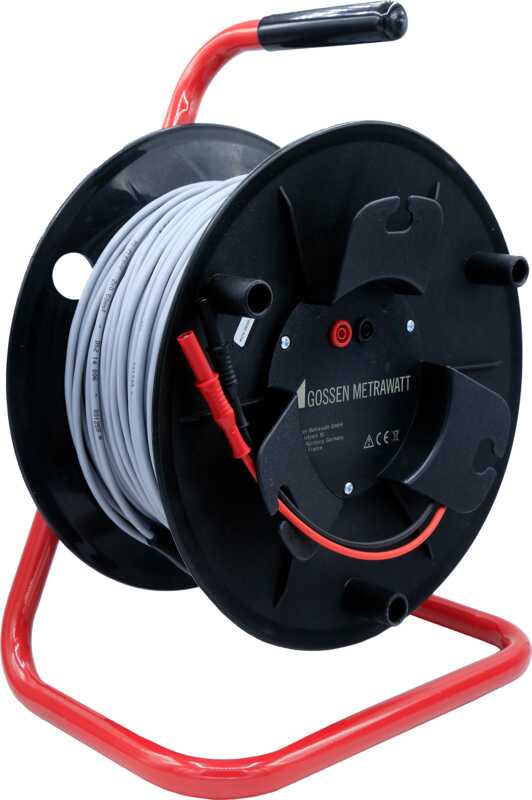

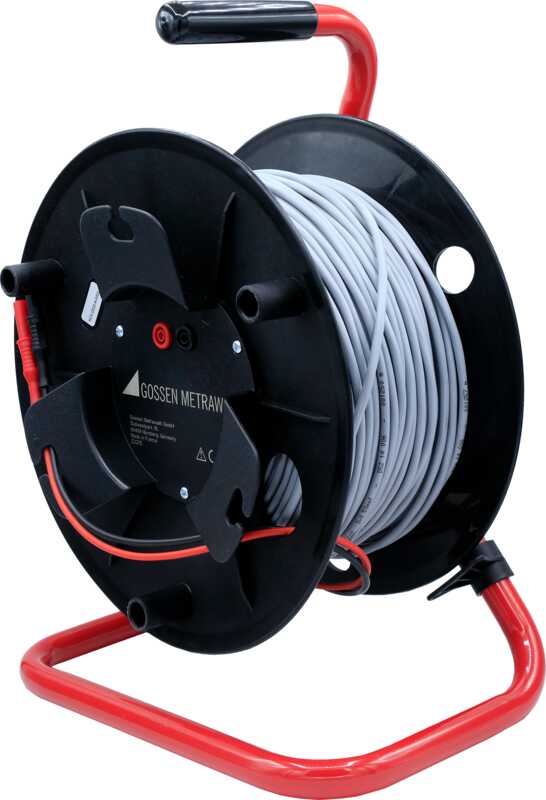

100 meter, 2-pole extension cable for 4-wire measurement with METRAHIT IM XTRA, E-DRIVE or TECH @ 200 mA

4-wire measurement is made possible at large objects with the KCV100.

Bonding tests, lightning protection testing and wick test

Testing of lightning protection at large objects such as wind power turbine blades and lattice towers

Technical characteristics
- Cable length: 100 m
- Number of conductors: 2
- Terminals: 2 sockets (4 mm) on the cable real 2 plugs (4 mm) at the end of the cable
- Overall resistance: < 5 Ω
- Max. permissible measuring voltage: 30 VAC / 60 VDC
- Measuring category: O
- Protection: IP 52
Particularities
100 m, 2-conductor, on a cable reel for mobile 4-wire measurements

Technical product comparison
Compare
Contents
1 cable reel with 100 meter, 2-pole measurement cable
1 pair of adapters as measurement cable connectors: 4 mm socket to 4 mm socket
1 supplement sheet
