Item number: M192A

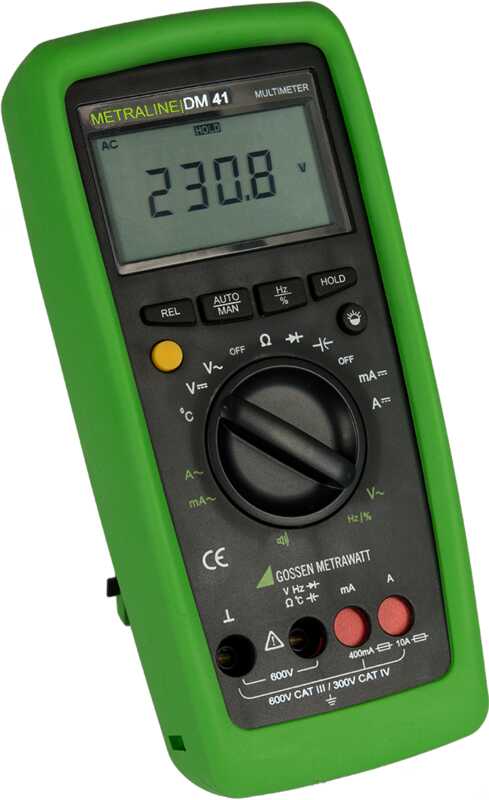

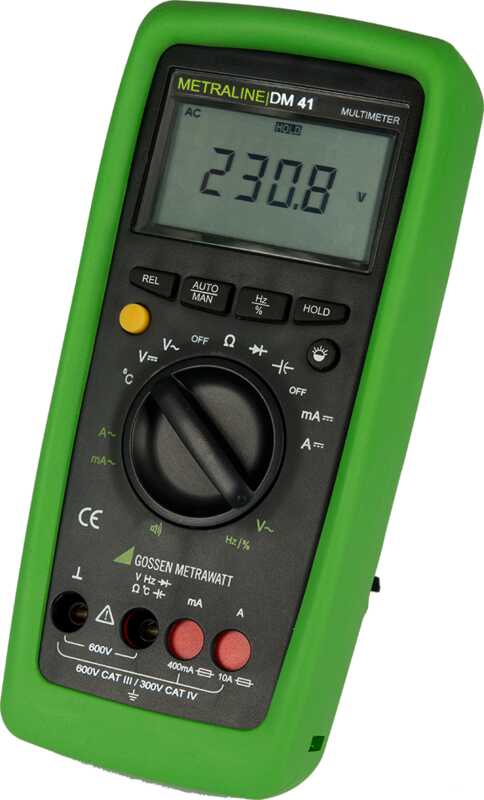

Digital multimeter with temperature measurement

The METRALINE DM41 offers all of the measuring functions of a comprehensive, medium-priced multimeter: convincing technology with voltage, resistance, current and temperature measuring ranges, as well as additional measuring functions plus automatic functions such as frequency and duty cycle measurement.

The digital multimeter with outstanding value for the money. Time-tested Gossen Metrawatt reliability and safety. Reliable measurement results in measuring categories CAT IV 300 V and CAT III 600 V with additional safety for the user and the instrument thanks to automatic blocking sockets (ABS).

The robust METRALINE DM41 digital multimeter offers a great variety of convincing performance features.

It’s equipped with state-of-the-art technology and it assures precision measurement results. The extremely compact and ergonomic design provides for maximized ease of use and safety.

Thanks to a broad range of functions, it’s universally suitable for demanding measuring tasks in a great variety of applications.

Product Highlights

Frequency range up to 1 kHz
Duty cycle measurement
Automatic blocking sockets (ABS)

Your advantages

Universal use in all fields of electrical engineering!
Digital display with 4000 digits
Measurement of voltage and current, AC and DC, resistance, temperature, frequency, duty cycle, capacitance, continuity/diodes
Automatic measuring range selection and measured value storage
Safety for the user and the instrument in measuring category CAT III up to 600 V and CAT IV up to 300 V

Applications

Auto-ranging multimeter for use in all fields of electrical engineering, e.g. electrical installation, study programs and training

Technical characteristics
- Resolution: 4000 digits (3¾ places)
- Digital display with background illumination • Basic accuracy: 0.5% V DC
- Voltage: V DC 100 μV ... 1000 V and V AC 100 μV ... 1000 V
- Current: A DC 10 μA ... 10 A and A AC 10 μA ... 10 A
- Resistance: 100 mΩ ... 40 MΩ
- Temperature: -50 ... +1300 °C, type K thermocouple • Frequency measurement: 0.001 Hz ... 500.0 kHz
- Duty cycle measurement: 1% ... 98.9% (1 kHz)
- Capacitance measurement: 1 pF ... 200.0 μF
- Continuity and diode testing
- Hold / peak / min.-max. / relative (zero)
- Automatic/manual measuring range selection
- Automatic blocking sockets (ABS)
- Measuring category: 300 V CAT IV, 600 V CAT III
- Rubber holster for protection against shocks and impacts
- 3-year guarantee
Particularities
36-month guarantee for materials and workmanship
