Item number: M197A

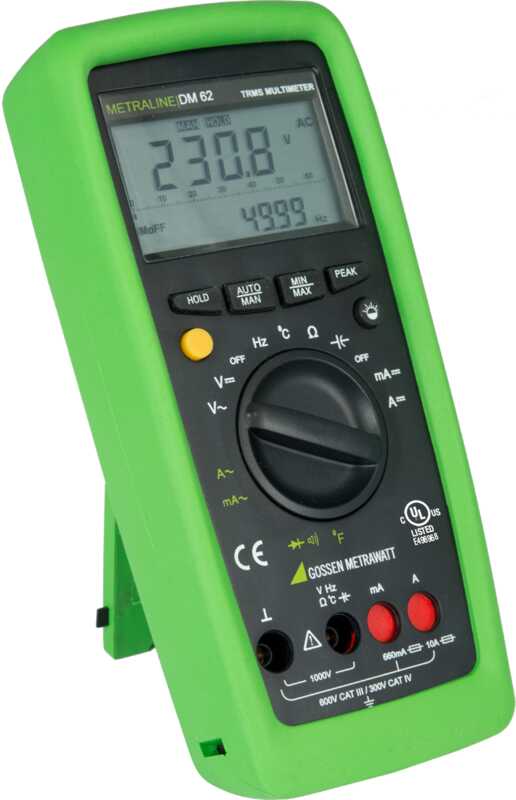

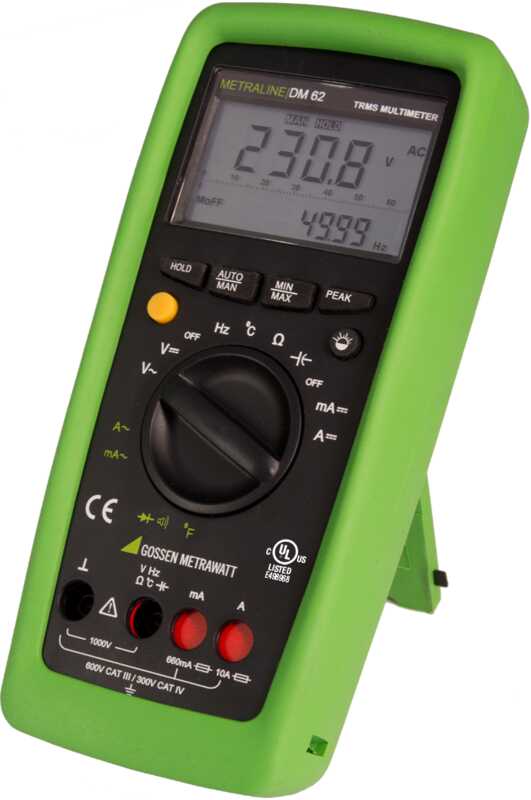

TRMS Digital Multimeter with Analog Bar Graph and Temperature Measurement

The METRALINE DM62 offers all of the measuring functions of a comprehensive, medium-priced multimeter: convincing technology with voltage, resistance, current and temperature measuring ranges, as well as additional measuring functions plus automatic functions such as frequency and duty cycle measurement.

The TRMS multimeter with outstanding price-performance ratio. Time-tested Gossen Metrawatt reliability and safety. Reliable measurement results in measuring categories CAT IV 300 V and CAT III 600 V with additional safety for the user and the instrument thanks to automatic blocking sockets (ABS).

The robust METRALINE DM62 digital multimeter offers a great variety of convincing performance features.

It’s equipped with state-of-the-art technology and it assures precision measurement results. The extremely compact and ergonomic design provides for maximized ease of use and safety.

Thanks to TRMS measurement and a broad range of functions, it’s universally suitable for demanding measuring tasks in a great variety of applications.

Product Highlights

TRMS measurement up to 2 kHz
Resolution: 6600 digits (3 6/7 place) and analog bar graph (66 points)
Dual digital display with background illumination
Basic accuracy: 0.4% V DC Bandwidth, V AC TRMS: 2 kHz
Voltage: V DC and AC TRMS 100 μV ... 1000 V
Current: A DC and AC TRMS 10 μA ... 10 A
Resistance: 100 mΩ ... 60 MΩ
Temperature: 0 ... +1300 °C, type K thermocouple
Frequency measurement: 0.01 Hz ... 10.00 MHz
Duty cycle measurement: 1 ... 98.9% (1 kHz)
Capacitance measurement: 1 pF ... 40.00 mF
Continuity and diode testing Hold / peak / min.-max. / relative (zero)
Automatic/manual measuring range selection
Automatic blocking sockets (ABS)
Measuring category: 300 V CAT IV, 600 V CAT III
Rubber holster for protection against shocks and impacts 3-year guarantee

Your advantages

Universal use in all fields of electrical engineering!
TRMS measurement with digital display (6600 digits) and analog scale
Measurement of voltage and current, AC and DC, resistance, temperature, frequency, duty cycle, capacitance, continuity/diodes
Automatic measuring range selection and measured value storage
Safety for the user and the instrument in measuring categories CAT III up to 600 V and CAT IV up to 300 V.
