METRAHit 27Ex AIRBUS-Ausführung

Thank you

Item number: M227G

Milliohmmeter for Use in Potentially Explosive Atmospheres

  • m227g-metrahit27ex_m227g_set_14108.jpg

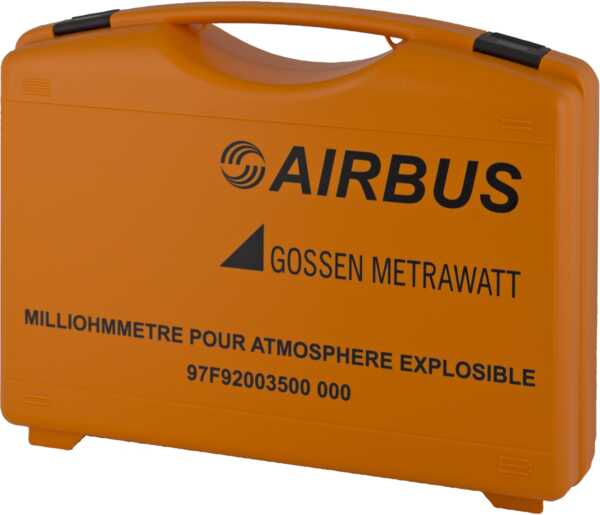

  • m227g-metrahit27ex_m227g_case_persp1_14106.jpg

The M227G Metrahit EX is a compact milliohmmeter for the measurement of low value contact resistance (Ground Bond) in potentially explosive atmospheres. For example, the contacts inside aircraft fuel tanks, or on aircraft outer skins (lightning protection and wick test). This instrument can also be used for general low value resistance measurements inside and outside of potentially explosive atmospheres.

  • Technical characteristics
    • Type AIRBUS Instrument
    • Art. No. M227G
    • Identification No. 97F92003500 according AMM (Aircraft Maintenance Manual)
    • Measuring ranges: 30 mO, 300 mO, 3 O, 30 O
    • Resolution: 10 µOhm
    • Measuring method: Kelvin connection (4-wire measurement)
    • DATA Hold memory: 1200 measured values
    • EX designation: Ex II 2 G EEx ia IIA T4
    • Prototype test certificate: INERIS 05ATEX0040
    • DAkkS calibration certificate
    • Guaranty: 3 years material and workmanship,
    • 1 to 3 years for calibration (dependending on the application)
